当前位置：首页 > 产品中心 > 台湾FITI IC

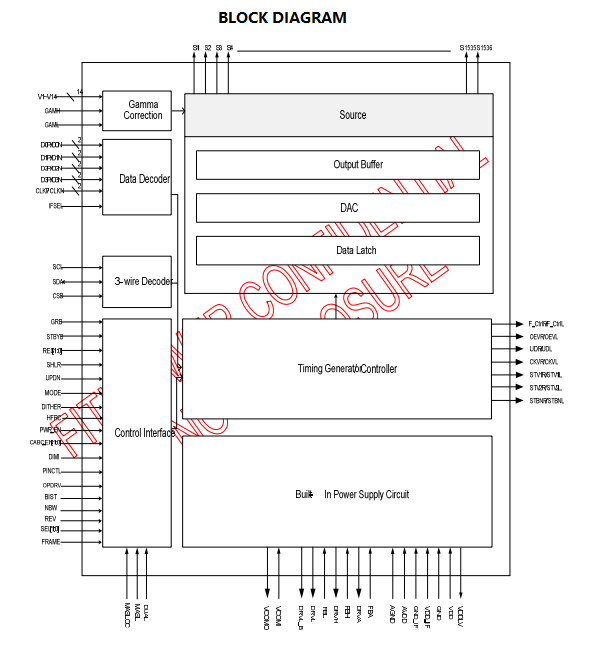

品名：中、大尺寸IC:EK系列

型号：EK79001H系列

简介：

FEATURES
a、Special design for 1024RGBx600 TFT LCD Panel with LVDS/TTL interface
b、Integrate 1536 channel source driver only for dual gate function
c、Support bidirectional shift control (CMOS signal)
d、Support panel resolution (HxV): 1024(RGB) x 768 , 1024(RGB) x 600 ,800(RGB) x 600, 800(RGB) x 480
e、8-bit resolution 256 gray-scale with Dithering ( 6 bits DAC + 2 bit FRC or HFRC)
f、Support Pin Control function for Up/Down, Left/Right … control
g、Power for digital circuit (VDD): 2.3V ~ 3.6V
h、Power for analog circuit (AVDD): 8V ~ 13.5V
i、Operating frequency: 71 MHz (Max.)
j、Embedded Gamma Table for special custom request
k、V1~V14 for adjusting Gamma correction
m、1 + 2 dot inversion architecture
n、Built-In AUTO pattern
o、Built-In VCOM Buffer
p、Built-In SDRRS function
q、Support no_clock detection
i、COG package
s、Chip size = 25000um x 700um
t、Output bump pitch = 15um

品名：中、大尺寸IC:EK系列

型号：EK79007AD

简介：

FEATURES
a、Special design for middle size TFT LCD Panel with MIPI interface
b、Integrate 1536 channel source driver and timing controller with dual gate function

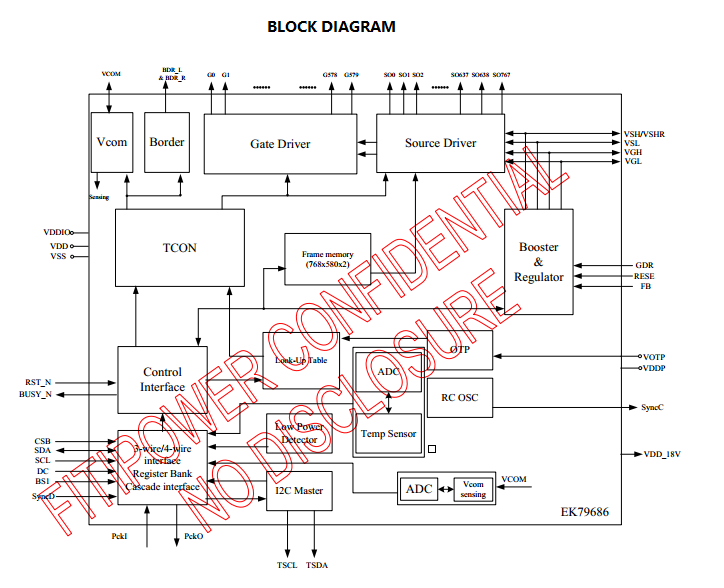

品名：中、大尺寸IC:EK系列

型号：EK79686AB

简介：

FEATURES
a、System-on-chip (SOC) for color application
b、Timing controller support several all resolution (maximum resolution 768x580)

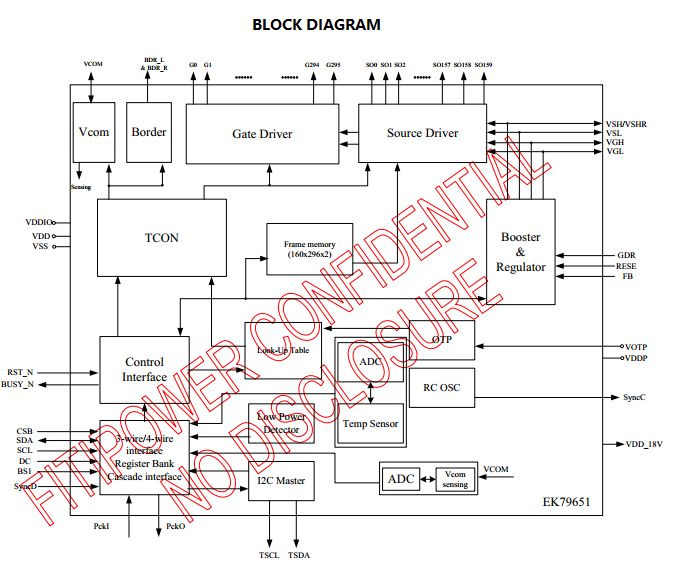

品名：中、大尺寸IC:EK系列

型号：EK79651AA

简介：

FEATURES
a、System-on-chip (SOC) for color application
b、Timing controller support several all resolution (maximum resolution 160x296)

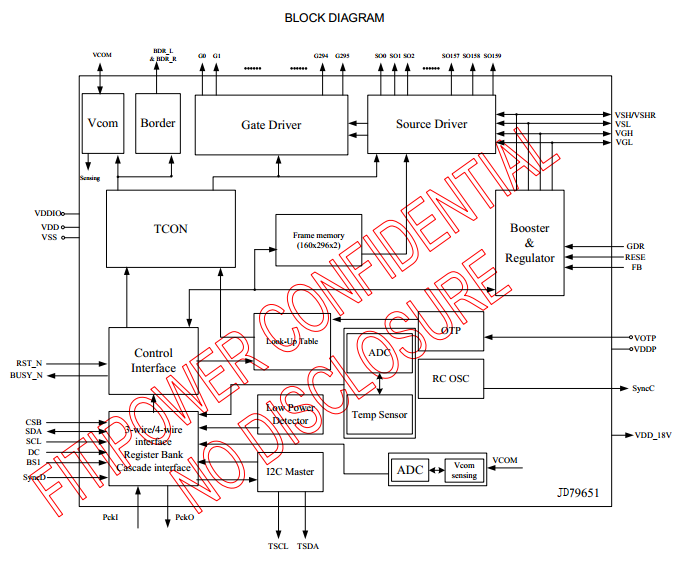

品名：驱动IC:JD系列

型号：JD79651系列

简介：

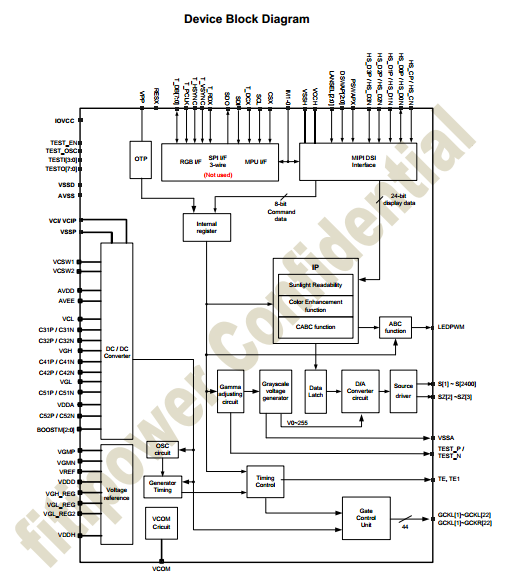

品名：驱动IC:JD系列

型号：JD9367系列

简介：

Features
•Single chip solution for a WXGA a-Si type LCD display
•Resolution:
800RGB x LN*2
768RGB x LN*2
720RGB x LN*2
640RGB x LN*2
600RGB x LN*2
•Display color modes
•Full color mode:
 16.7M colours (24-bit 8(R):8(G):8(B))
•Reduce color mode:
 262k colours (18-bit 6(R):6(G):6(B))
 65k colours (16-bit 5(R):6(G):5(B))
 8 colors (Idle mode on): 8 colors (3-bit binary mode)

首页上一页 123 4 下一页尾页页次：2/4 共21条记录
