当前位置：首页 > 产品中心 > 台湾FITI IC

品名：中、大尺寸IC:EK系列

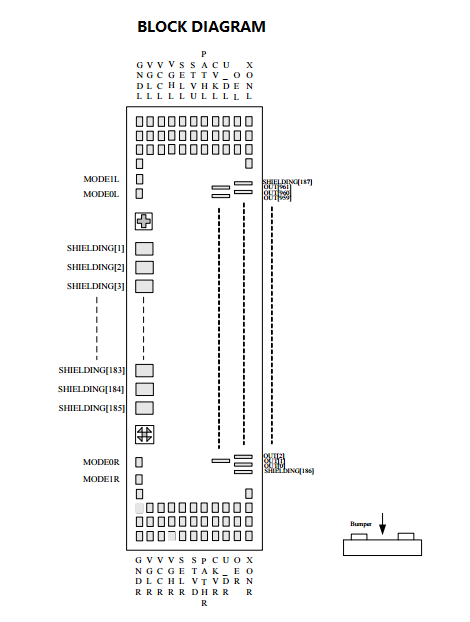

型号：EK73002A系列

简介：

FEATURES
Gate driver for TFT-LCD panels
960/900/864/816 channel outputs and 2 channel outputs which are fixed to VGL
Bi-directional shift function
Driving voltage range: 40V
logical supply voltage: 2.7 ~ 3.6V
Cascade dot-expansion function
CMOS silicon gate (P-type)
COG solution
Chip size=20208um*670um、Output bump pitch=20um、Bump height=9um

品名：中、大尺寸IC:EK系列

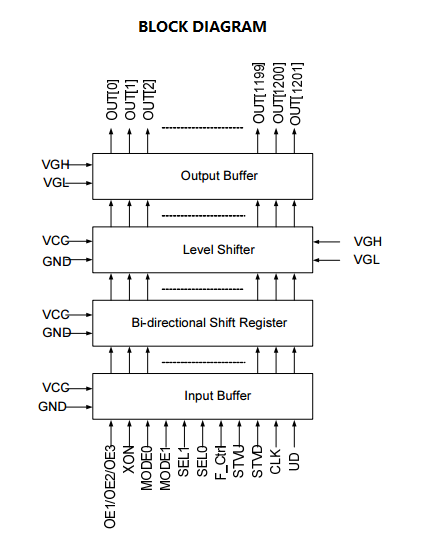

型号：EK73215系列

简介：

FEATURES
2-level output gate driver for TFT LCD panel
1200/1152/1080/960-Output gate driver with 2 dummy outputs which are fixed to VGL
Maximum +40V output driving voltage
Logic operating voltage (VCC): 2.3 ~ 3.6V
Bi-directional data shift capability
200 KHz maximum operation frequency
High voltage CMOS process technology
COG package
Chip size=23650*670µm
Output bump pitch=18µm

品名：中、大尺寸IC:EK系列

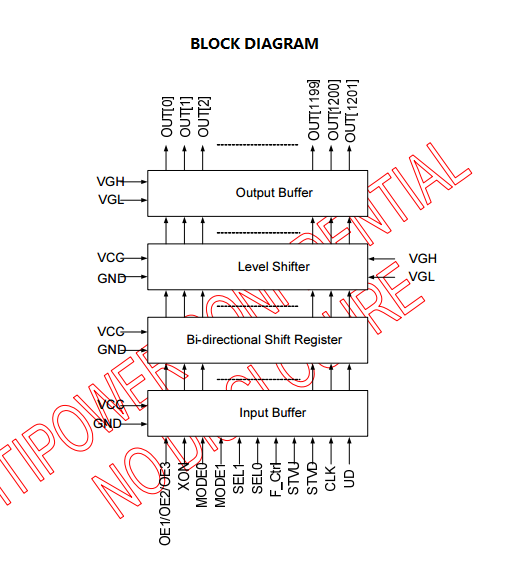

型号：EK73217A系列

简介：

FEATURES
2-level output gate driver for TFT LCD panel
1200/1152/1080/960-Output gate driver with 2 dummy outputs which are fixed to VGL
Maximum +40V output driving voltage
Logic operating voltage (VCC): 1.7 ~ 3.6V
Bi-directional data shift capability
200 KHz maximum operation frequency
High voltage CMOS process technology
COG package
Chip size=23650*670µm
Output bump pitch=18µm

品名：中、大尺寸IC:EK系列

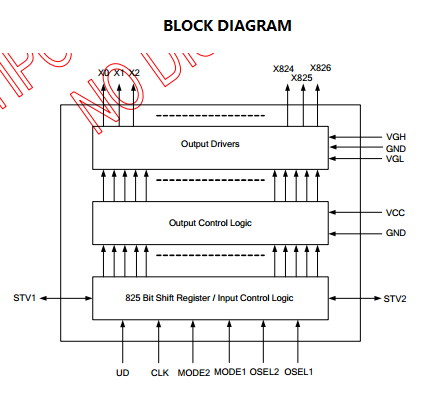

型号：EK73601系列

简介：

FEATURES
 Gate driver for Active Matrix Display.
 825/768/600/480 channels outputs + 2pins (Fixed to VGL)
 Bi-direction shift selectable function
 Driving voltage: VGL + 52V
 Logical interface: 2.7 ~ 3.6V
 Cascade function for dot-expansion
 Package： COG type

品名：中、大尺寸IC:EK系列

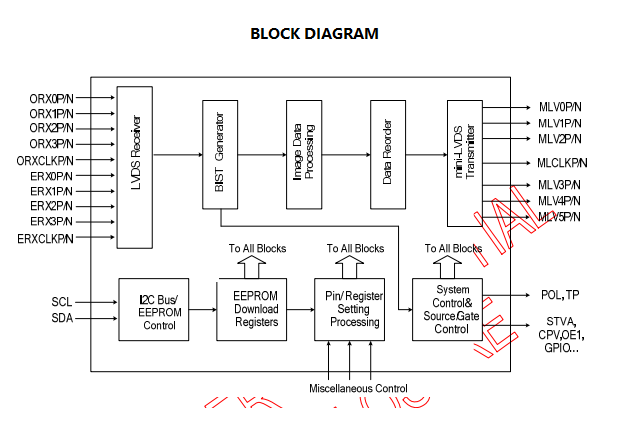

型号：EK76203系列

简介：

FEATURES
 Support 1-port/2-port 6-bit/8-bit LVDS receiver that maximum clock rate up to 100 MHz.
 Support 1-port 3-pair/6-pair 6-bit/8-bit mini-LVDS transmitter that maximum clock up to 340 MHz.
 Support swap function for both LVDS input and miniLVDS output
 Support HD (1366x768) and FHD (1920x1080)*1
 Support built-in self test (BIST) pattern function
 Support free-run mode (MUTE) function
 Support spread spectrum clock generator (SSCG)
 Support output data skew control function
 Support dithering function
 Support gamma correction function
 Support DE mode only
 Support POL 1-line dot, 2-line dot, 1+2-line dot , column inversion mode
 Support control timing for GOA driving
 Support fixed-gate-on control timing
 Support programmable pixel arrangement for all panel structure
 Support programmable control signals *2
 Built-in low-voltage reset function
 Supply voltage: 3.0 ~ 3.6V
 Support external EEPROM ( 4k bytes ) with I2C interface.
 64-pin TQFP 7x7 mm package (including pin 9x9 mm)

品名：中、大尺寸IC:EK系列

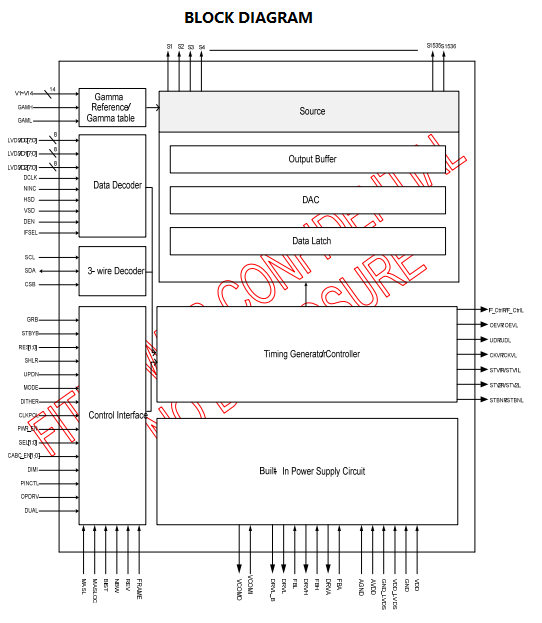

型号：EK79001系列

简介：

FEATURES
Special design for 1024RGBx600 TFT LCD Panel with LVDS/TTL interface
Integrate 1536 channel source driver with single or dual gate function
Support cascade function with bidirectional shift control (CMOS signal)
Support panel resolution (HxV) : 1024(RGB) x 768 , 1024(RGB) x 600 ,800(RGB) x 600 , 800(RGB) x 480
8-bit resolution 256 gray-scale with Dithering ( 6 bits DAC + 2 bit FRC or HFRC)
Support Pin Control function for Up/Down, Left/Right … control
Power for digital circuit(VDD): 2.3V ~ 3.6V
Power for analog circuit(AVDD): 8V ~ 13.5V
Operating frequency : 71 MHz (Max.)
Embedded Gamma Table for special custom request
V1~V14 for adjusting Gamma correction
1 + 2 dot inversion architecture
Built-In PWM controller for AVDD, Charge pump for VGH / VGL, and VCOM buffer
Built-In CABC function
Built-In AUTO pattern
Built-In SDRRS function
Support no_clock detection
COG package
Chip size = 25000um x 700um
Output bump pitch = 15um

首页上一页 12 3 4 下一页尾页页次：1/4 共21条记录
