当前位置：首页 > 产品中心 > 台湾FITI IC

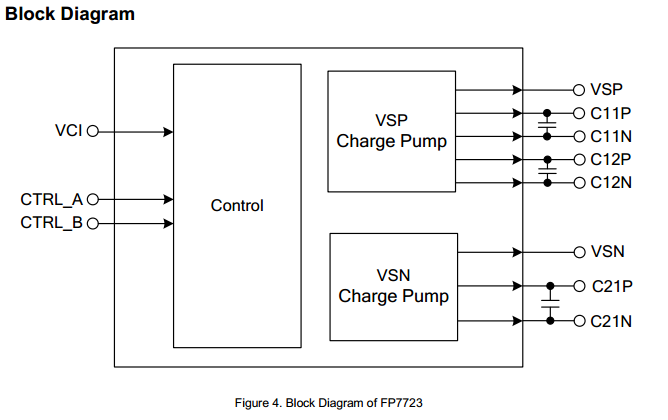

品名：电源IC：FP系列

型号：FP7723系列

简介：

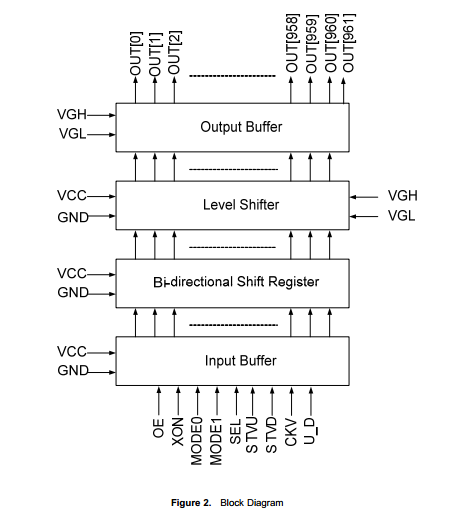

品名：中、大尺寸IC：EK系列

型号：EK73002A

简介：

FEATURES:
•Gate driver for TFT-LCD panels
•960/900/864/816 channel outputs and 2 channel outputs which are fixed to VGL
•Bi-directional shift function
•Driving voltage range: 40V
•logical supply voltage: 2.7 ~ 3.6V
•Cascade dot-expansion function
•CMOS silicon gate (P-type)
•COG solution
•Chip size=20208um*670um、Output bump pitch=20um、Bump height=9um

品名：中、大尺寸IC：EK系列

型号：EK9713CA

简介：

FEATURES：
•Special design for small-sized color TFT LCD source drivers with timing controller
•Integrated 1200 channel source driver
•Support dual-gate operation mode
•Support display resolutions : 800(RGB)x480、 800(RGB)x600
•Support TTL 24-bit parallel (RGB) input timing
•Source output with 8-bit resolution 256 gray scale (2-bit dithering)
•Support Delta or Stripe color filter configuration
•Support stand-by mode for low power consumption
•Pin controlled UP/DOWN, LEFT/RIGHT, HV/DE mode select function
•Embedded Gamma Table for special custom request
•Support external V1 ~ V14 pad for Gamma adjusting
•Output dynamic range: 0.1 ~ AVDD-0.1V
•Power for source driver voltage AVDD: 6.5V ~ 13.5V
•Power for digital interface circuit VDD: 1.8 ~ 3.6V
•Max. operating frequency: 50 MHz
•COG package
